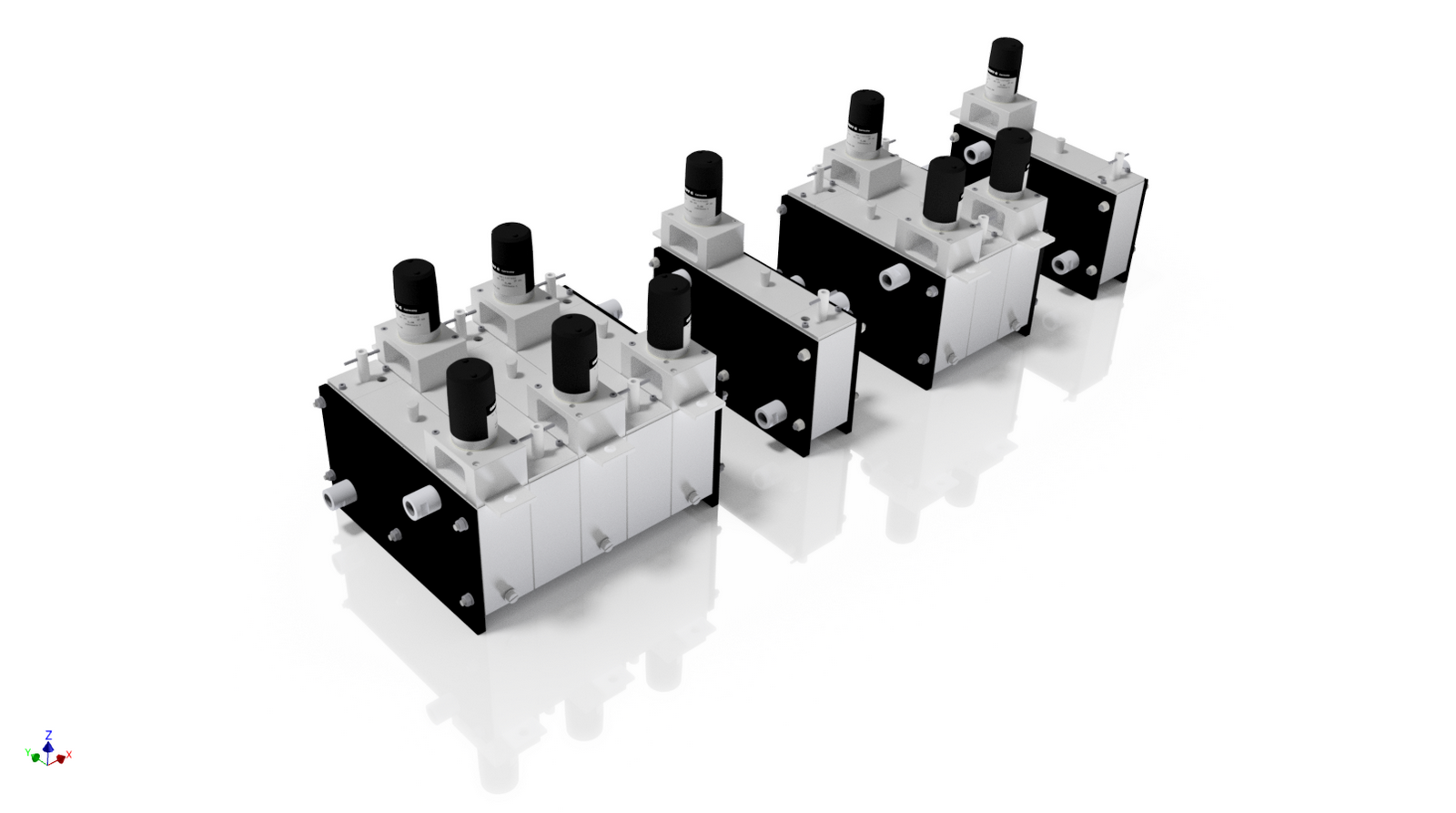

Laboratory MSU mixer-settler units

Compact with a modular design. Small scale extraction units viable for solvent extraction research and evaluation of chemistry and process data. Available in standard sizes or custom according to requirements.

  • Small scale extraction
  • Solvent extraction R&D

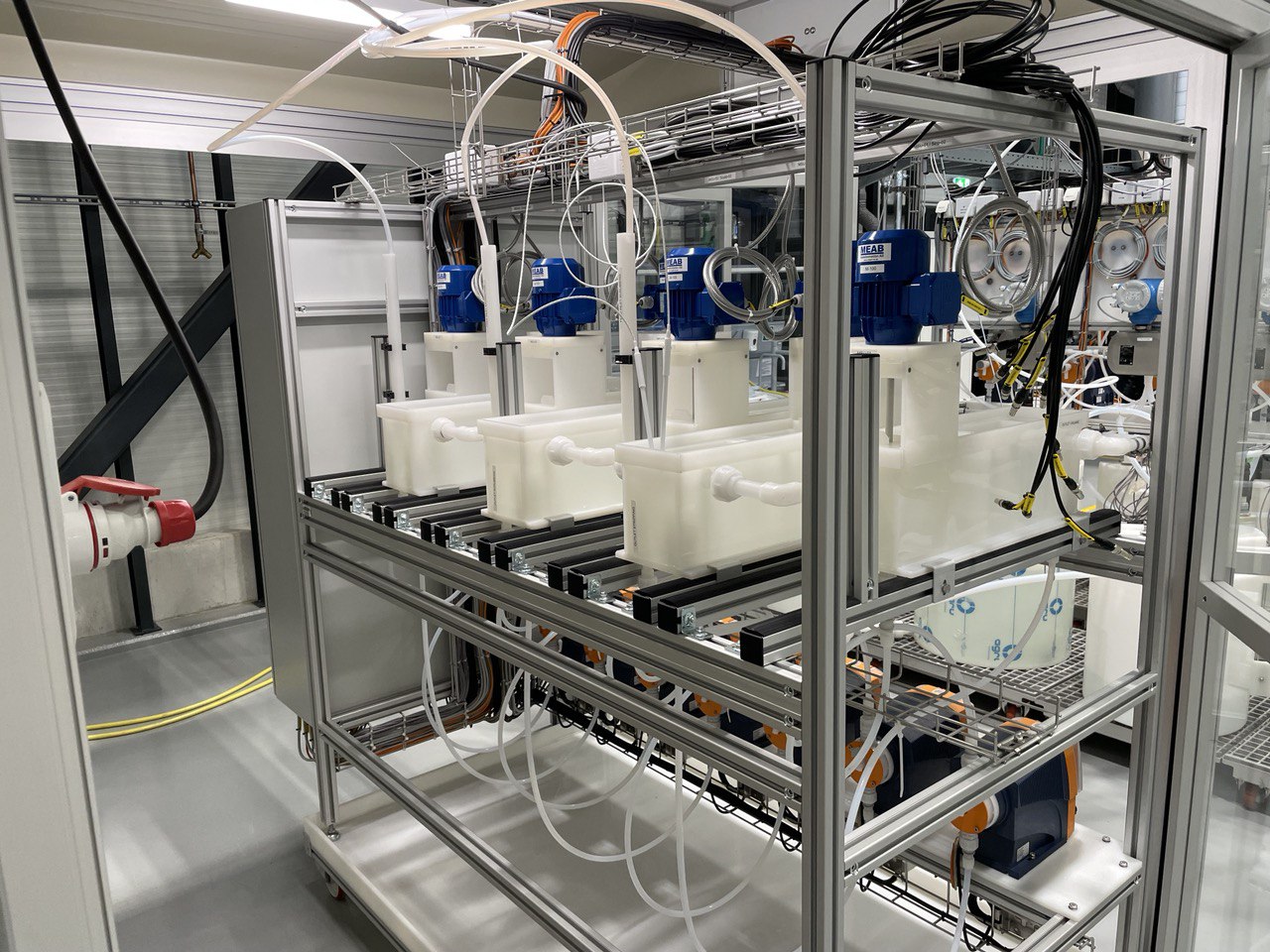

MSU-0.5
MSU-5 & MSU-15

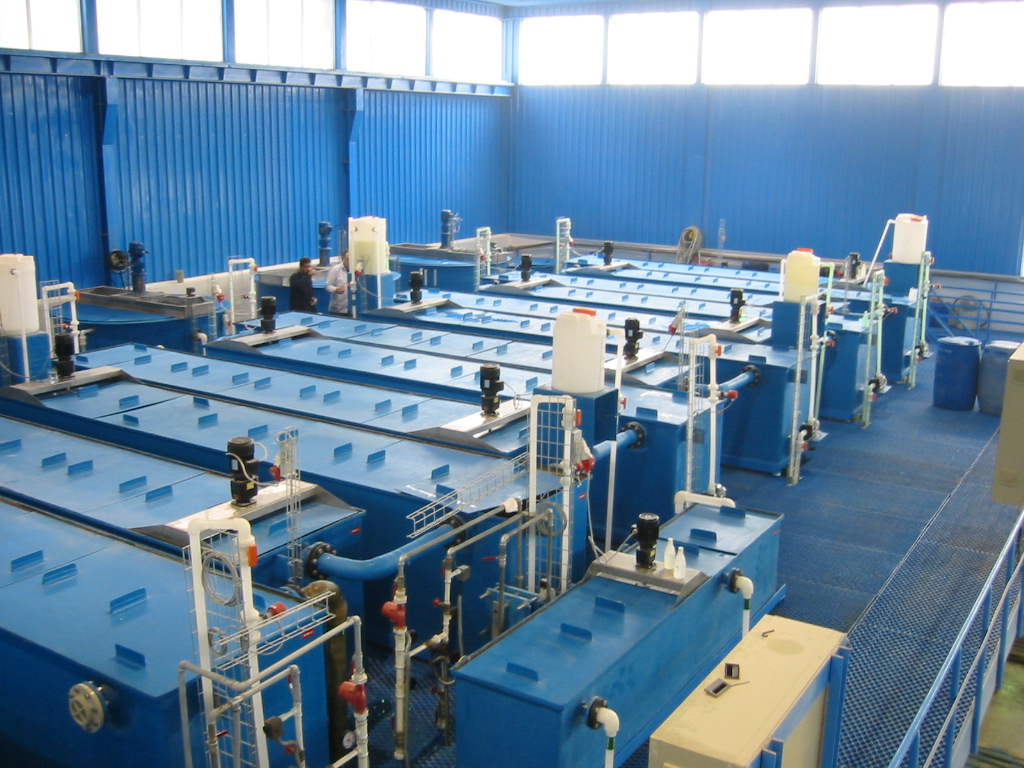

Mixer-settler process equipment

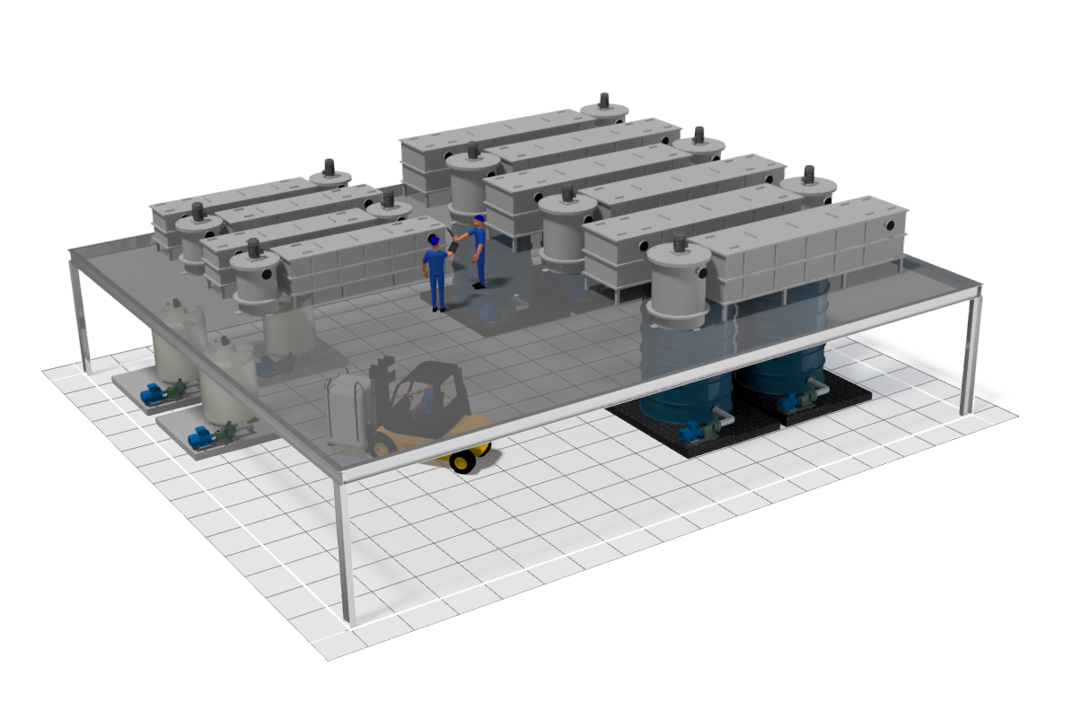

MSU-SQ mixer-settler units - industrial mixer-settler unit, dimensioned and produced according to process engineering data.

Multi-layer construction with reinforced chemical resistant vinyl ester resin or PVDF.

MSU - SQ

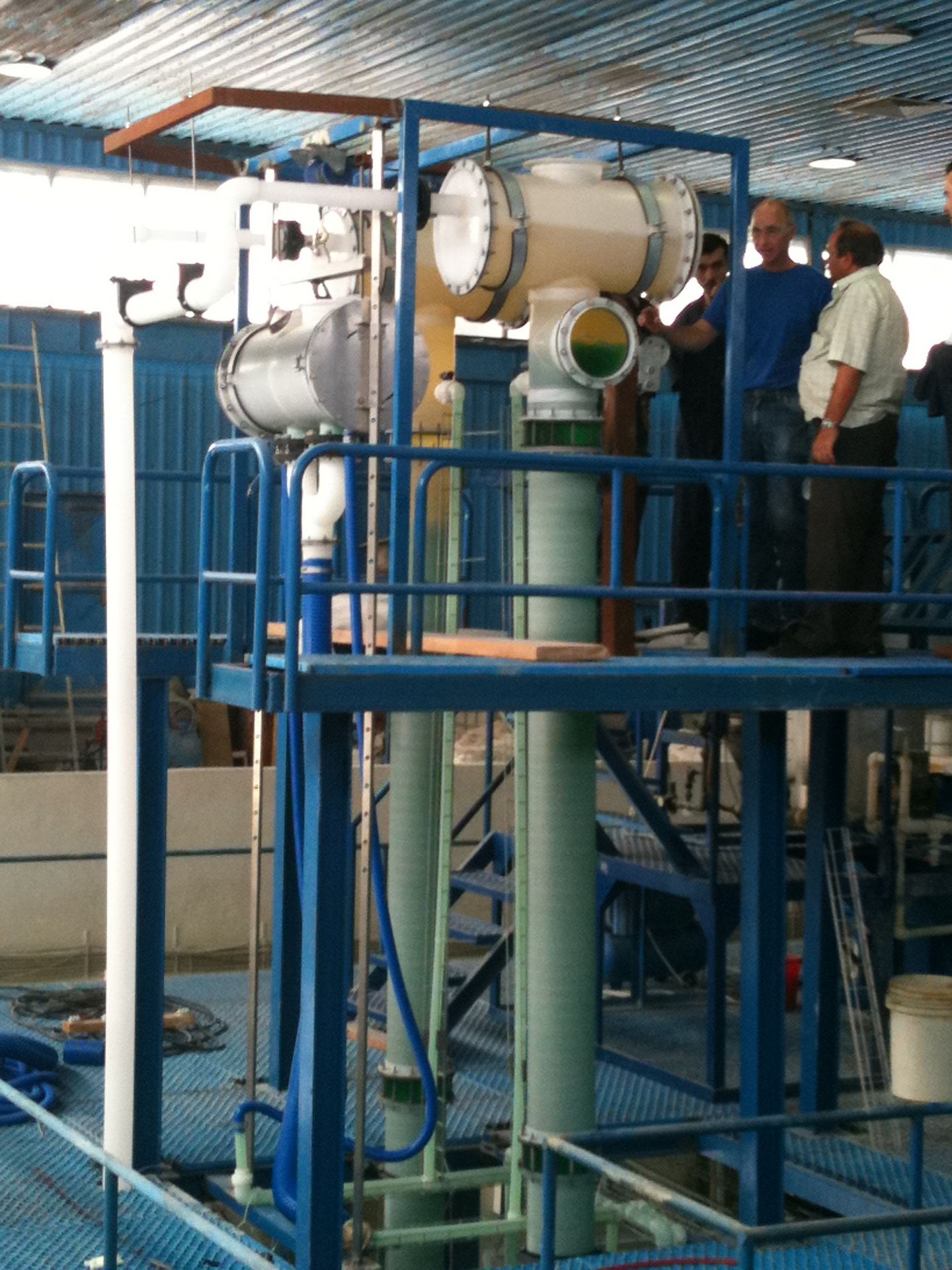

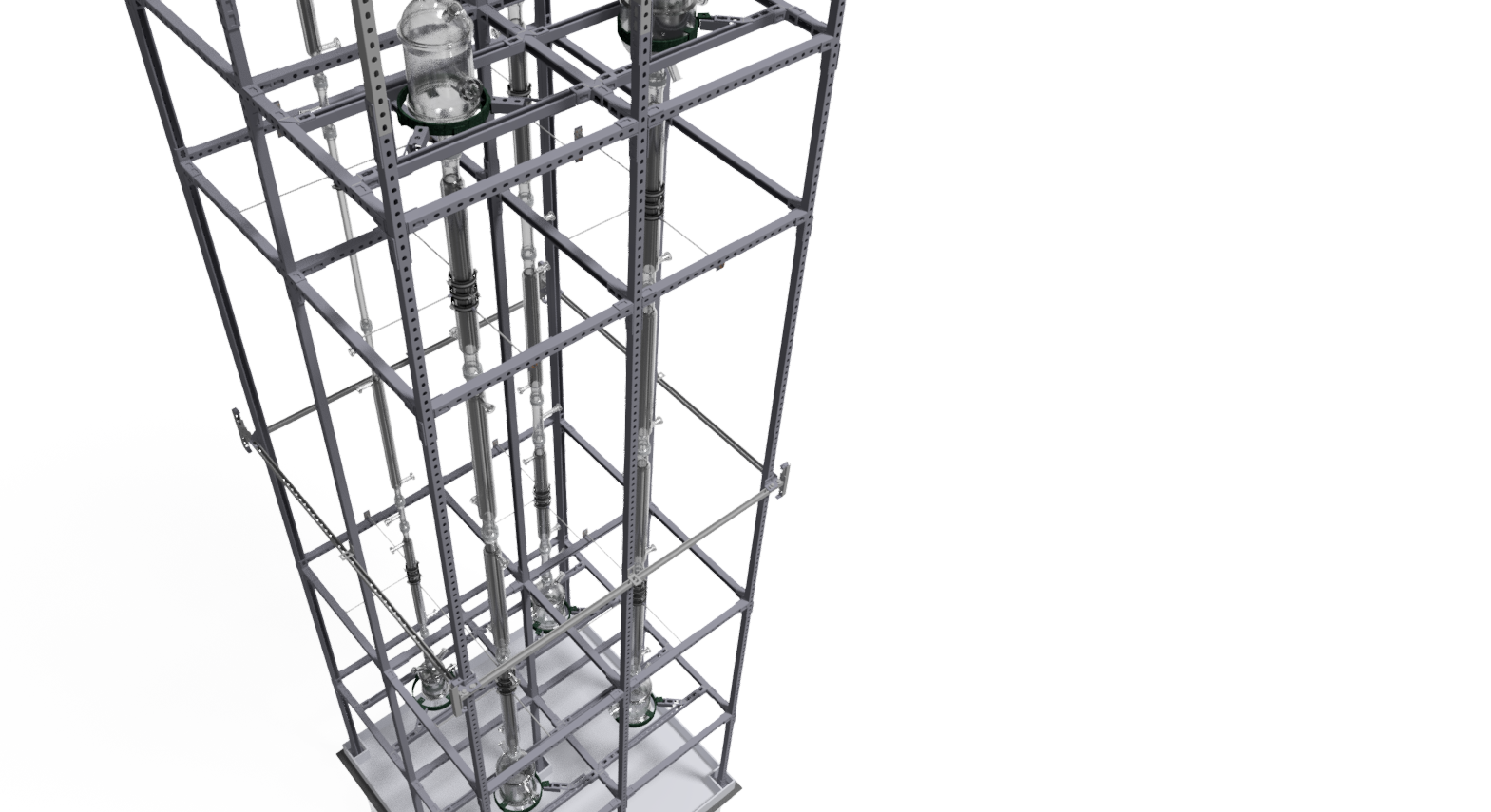

The pulsed column

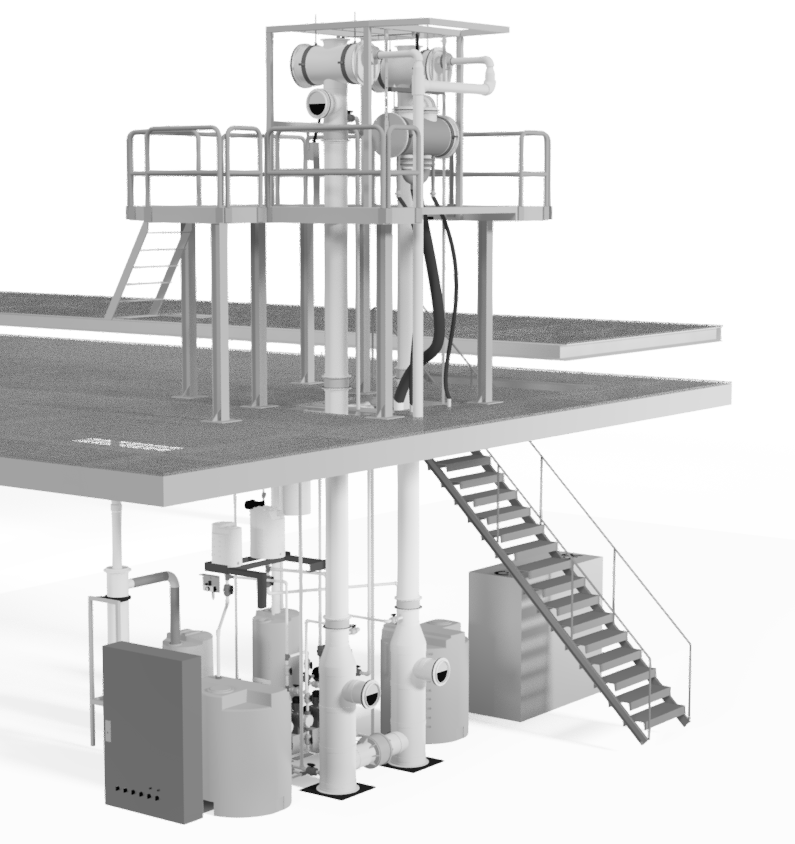

The pulsed column - industrial pulsed sieve plate twin column arrangement used in solvent extraction. The pulses are swinging like a gyratory movement between two columns, giving low energy input and smooth operation.

The pulsed column

MEAB has produced hydrometallurgy equipment for more than 50 years and has engineering & manufacturing competence for delivering industry standard equipment for solvent extraction.
Depending on process and chemical data, we will adapt a manufacturing process and material knowledge to make equipment designed for continuous operation in highly corrosive conditions.
